RF SYNTHESIZERS SINGLE CHANNEL PLATFORM

Holzworth's RF Synthesizers Modules were originally designed as the internal, tunable LO test sources for Holzworth phase noise analyzer products. Due to the need for easy integration, the HSM Series designs incorporate a long list of electrical and mechanical features to satisfy the demanding requirements of today's high performance communications systems and integrated test systems. FIELD PROVEN RELIABLITY with MTBFs exceeding 240kHrs.

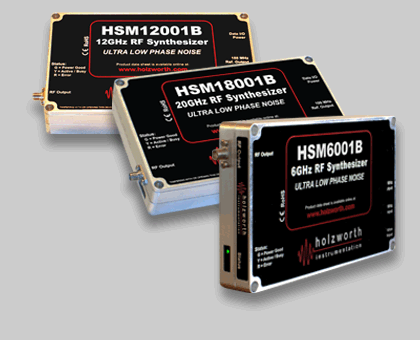

HSM SERIES: SINGLE CHANNEL MODULES

The Holzworth HSM Series RF Synthesizers are microwave CW sources that are architected on a non-PLL based platform.

The digital-analog hybrid design provides excellent phase noise performance and spurious response, which complement the phase coherent nature of these digital-analog hybrid signal sources.

The HSM Series offers several models that cover increasingly wider bandwidths so users can best match an application requirement while optimizing the price point.



HSM SERIES SPECIFICATIONS

PART NUMBER Bandwidth Output Power Phase Noise (10kHz OS) Harmonics Spurious Download
HSM1001B 10MHz to 1GHz -70dBm to +20dBm -134 dBc/Hz at 1GHz -40dBc -70dBc Datasheet
HSM2001B     10MHz to 2GHz     -70dBm to +20dBm     -128 dBc/Hz at 2GHz     -40dBc     -70dBc

HSM3001B     10MHz to 3GHz     -70dBm to +20dBm     -124 dBc/Hz at 3GHz     -40dBc     -70dBc

HSM4001B     10MHz to 4GHz     -70dBm to +20dBm     -122 dBc/Hz at 4GHz     -40dBc     -70dBc

HSM6001B     10MHz to 6.7GHz     -70dBm to +20dBm     -118 dBc/Hz at 6GHz     -40dBc     -70dBc

HSM12001B     10MHz to 12.5GHz     -20dBm to +20dBm     -110 dBc/Hz at 12GHz     -30dBc     -60dBc     Datasheet
HSM18001B     10MHz to >20GHz     -20dBm to +20dBm     -106 dBc/Hz at 18GHz     -30dBc     -60dBc






HSM SERIES FREQUENCY SWITCHING SPEED

The frequency switching speed of the HSM Series is faster than most. Unlike PLL based architectures, the non-PLL based HSM Series does not exhibit any significant settling time after a frequency change. Settling time is not always clearly specified in PLL based synthesizer datasheets even though it is often a large contributor to the overall switching speed.



COMMAND MODE

MAX Switching Speed


SPI (ASCII)

300µs

SPI (BINARY)

100µs

Wideband List Mode ( full bandwidth )

100µs

Narrowband List Mode ( < 5% bandwidth)

6µs



BURST MODE SELF PULSE MODULATION

Pulse modulation "burst mode" does not require an external stimulus signal. The programmable self pulse modulation function exhibits very fast rise and fall times with minimal overshoot or ringing.

The screen shot shown here demonstrates an approximate 10ns risetime (Tr) when operating at a frequency of 500MHz. The pulse width is approximately 100us in this example.

Refer to the product datasheet for more details.



COMMAND / CONTROL

The native I/O interface for the HSM Series is via SPI, which is preferred for most integrated applications. When used with a USB Communications Module or an Ethernet Communications Module, these synthesizer modules can be controlled with the Holzworth Application GUI or directly via addressed command lines.



HCM Model No.

HCM Description

Matching HSM Model(s)

HCM1     USB Communications Module     HSM1001B through HSM6001B

HCM3     Ethernet Communications Module     HSM1001B through HSM6001B

HCM6 USB Communications Module     HSM12001B and HSM18001B

HCM7     Ethernet Communications Module     HSM12001B and HSM18001B




NEEDING BETTER PERFORMANCE? Check out the HSX SERIES SIGNAL GENERATORS
